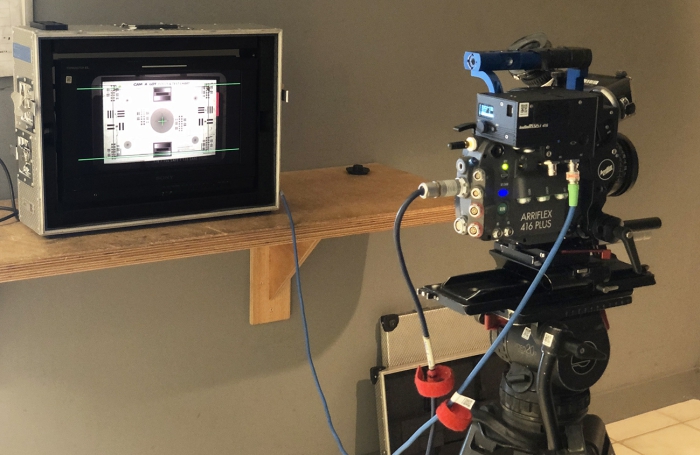

New build HD video assist for Arri416 16mm film camera with modern outputs.
IndieAssist mounts directly on the fixing position of the original Arri 416 assist.
A bit bigger the the original SD - IVS, but with nowadays HD quality and modern outputs,
with global shutter / HDSDI / 12 stops DR
Technical specifications:
SENSOR Size 1/1.2”
Resolution 1920 x 1080
Readout Progressive
Shutter Global
Pixel Size 5.86
Sensitivity ISO 100-960
GENLOCK Trilevel Sync Master / slave switchable
MODES YUV 4:2:2, 10 bit 1080p23.97 / 1080p24 / 1080p25 / 1080p30
INTERFACES 3G-HDSDI 2x HDBNC
Genlock-In HDBNC
Power + RS-485 Hirose
SYSTEM FEATURES White Balance Auto / manual
Colour Space YUV REC 709
Auto-Control AGC
Auto white balance
POWER Voltage 6 - 36 V DC
Consumption 3.5 W
